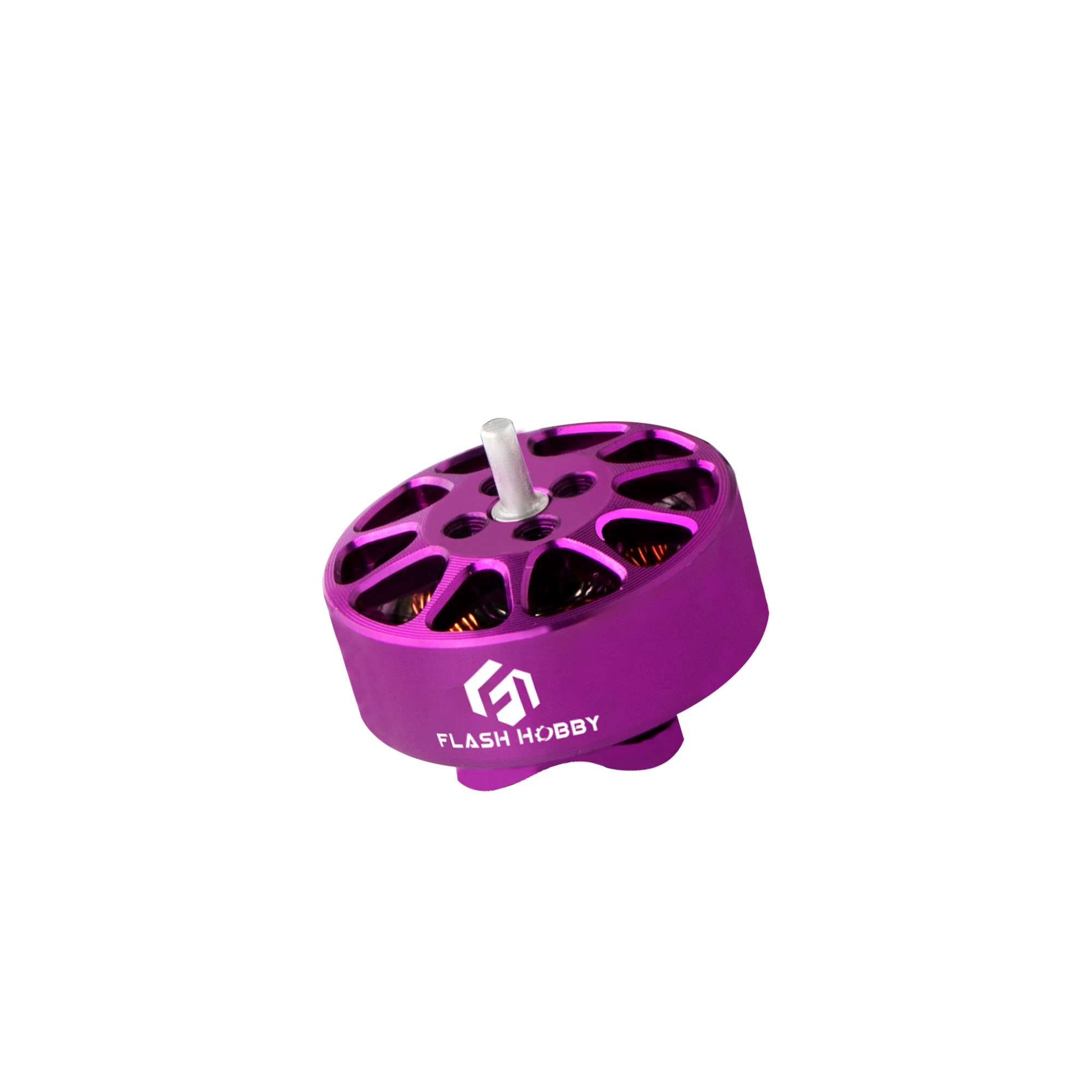

K1303 bürstenloser Motor
  • K1303 bürstenloser Motor K1303 bürstenloser Motor
  • K1303 bürstenloser Motor K1303 bürstenloser Motor
  • K1303 bürstenloser Motor K1303 bürstenloser Motor
  • K1303 bürstenloser Motor K1303 bürstenloser Motor

K1303 bürstenloser Motor

K1303 bürstenloser Motor
● Gewicht: 8,2 g (einschließlich der Kabel)
● Motorgröße: 18,4 x 11 mm
● Wellendurchmesser: 3,0 mm
● Pro Mount Dia: 4-m2*5
● Motorhalterung: 9*9 mm (M2*4)
● Konfiguration: 9N12p
● Motorkabel: 28#AWG 133 mm
Modell:K1303

Anfrage absenden

Produktbeschreibung


K1303 bürstenloser Motor



K1303-5000KV Motorspezifikation

Max Pull: 210g

Volts: 14,8 V (4s)

Vorgeschlagene Esc: 10a ~ 20a

Maximale Leistung: 144.6W

Maximaler Strom: 10.14a

Vorgeschlagene Requisite: 2 Zoll Prop


K1303-8000KV Motorspezifikation

Max Pull: 234g

Volts: 11,1 V (3s)

Vorgeschlagene Esc: 10a ~ 20a

Maximale Leistung: 196.6W

Maximaler Strom: 17,84a

Vorgeschlagene Requisite: 2 Zoll Prop




Ltem Nr. Stütze Gaspedal Volt   (V) Verstärker  (A) Watts (W) Schub  (G) Effizienz  (g/w) Betrieb           Temperatur()
K1303-5000KV 2040 50% 11.19 1.08 12.1  43 3.56  43.4
60% 11.19 2.03 22.7  60 2.64
70% 11.19 3.11 34.8  79 2.27
80% 11.13 4.53 50.4  99 1.96
90% 11.13 5.74 63.9  115 1.80
100% 11.08 5.68 62.9  114 1.81
K1303-5000KV 2540 50% 11.19 1.62 18.1  70 3.86  49.3
60% 11.13 2.97 33.1  98 2.96
70% 11.11 4.53 50.3  125 2.48
80% 11.11 6.15 68.3  153 2.24
90% 11.02 7.64 84.2  172 2.04
100% 11.08 7.57 83.9  170 2.03
K1303-5000KV 2540 50% 14.92 2.84 42.4  110 2.60  78
60% 14.92 4.66 69.5  146 2.10
70% 14.89 6.42 95.6  178 1.86
80% 14.81 8.51 126.0  207 1.64
90% 14.81 10.14 150.2  220 1.46
100% 14.86 9.73 144.6  210 1.45
K1303-5000KV 2040 50% 14.92 1.89 28.2  66 2.34  54.3
60% 14.92 3.24 48.3  91 1.88
70% 14.89 4.86 72.4  120 1.66
80% 14.86 6.76 100.5  146 1.45
90% 14.81 8.51 126.0  162 1.29
100% 14.81 8.45 125.1  160 1.28

Ltem Nr. Stütze Gaspedal Volt   (V) Verstärker  (A) Watts (W) Schub  (G) Effizienz  (g/w) Betrieb           Temperatur()
K1303-8000KV 2040 50% 7.4 1.76 13.0  43 3.30  35.9
60% 7.4 2.84 21.0  60 2.85
70% 7.4 4.32 32.0  79 2.47
80% 7.35 6.08 44.7  100 2.24
90% 7.32 7.91 57.9  118 2.04
100% 7.4 7.97 59.0  117 1.98
K1303-8000KV 2540 50% 11.24 5.47 61.5  133 2.16  80
60% 11.19 8.51 95.2  172 1.81
70% 11.05 11.76 129.9  207 1.59
80% 11.02 15.54 171.3  237 1.38
90% 10.97 18.24 200.1  248 1.24
100% 11.02 17.84 196.6  236 1.20
K1303-8000KV 2540 50% 7.46 2.97 22.2  74 3.34  43
60% 7.49 4.8 36.0  100 2.78
70% 7.35 6.96 51.2  124 2.42
80% 7.27 9.46 68.8  148 2.15
90% 7.32 12.03 88.1  169 1.92
100% 7.32 12.03 88.1  170 1.93
K1303-8000KV 2040 50% 11.19 3.31 37.0  81 2.19  50.6
60% 11.13 5.14 57.2  112 1.96
70% 11.05 8.04 88.8  149 1.68
80% 11.02 11.28 124.3  182 1.46
90% 10.94 13.92 152.3  204 1.34
100% 10.97 13.92 152.7  203 1.33
