Flash Hobby ist ein führender Hersteller, Lieferant und Exporteur von D2836EVO Starrflügelmotoren in China. Das Streben nach perfekter Produktqualität, damit unser D2836EVO-Starrflügelmotor von vielen Kunden zufrieden gestellt wurde. Extremes Design, hochwertige Rohstoffe, hohe Leistung und ein wettbewerbsfähiger Preis sind das, was jeder Kunde wünscht, und das können wir Ihnen auch bieten. Unverzichtbar ist natürlich auch unser perfekter After-Sales-Service. Wenn Sie an unseren D2836EVO Fixed Wing Motor Services interessiert sind, können Sie uns jetzt konsultieren, wir werden Ihnen rechtzeitig antworten!
D2836Anwendung für bürstenlose RC-Motoren

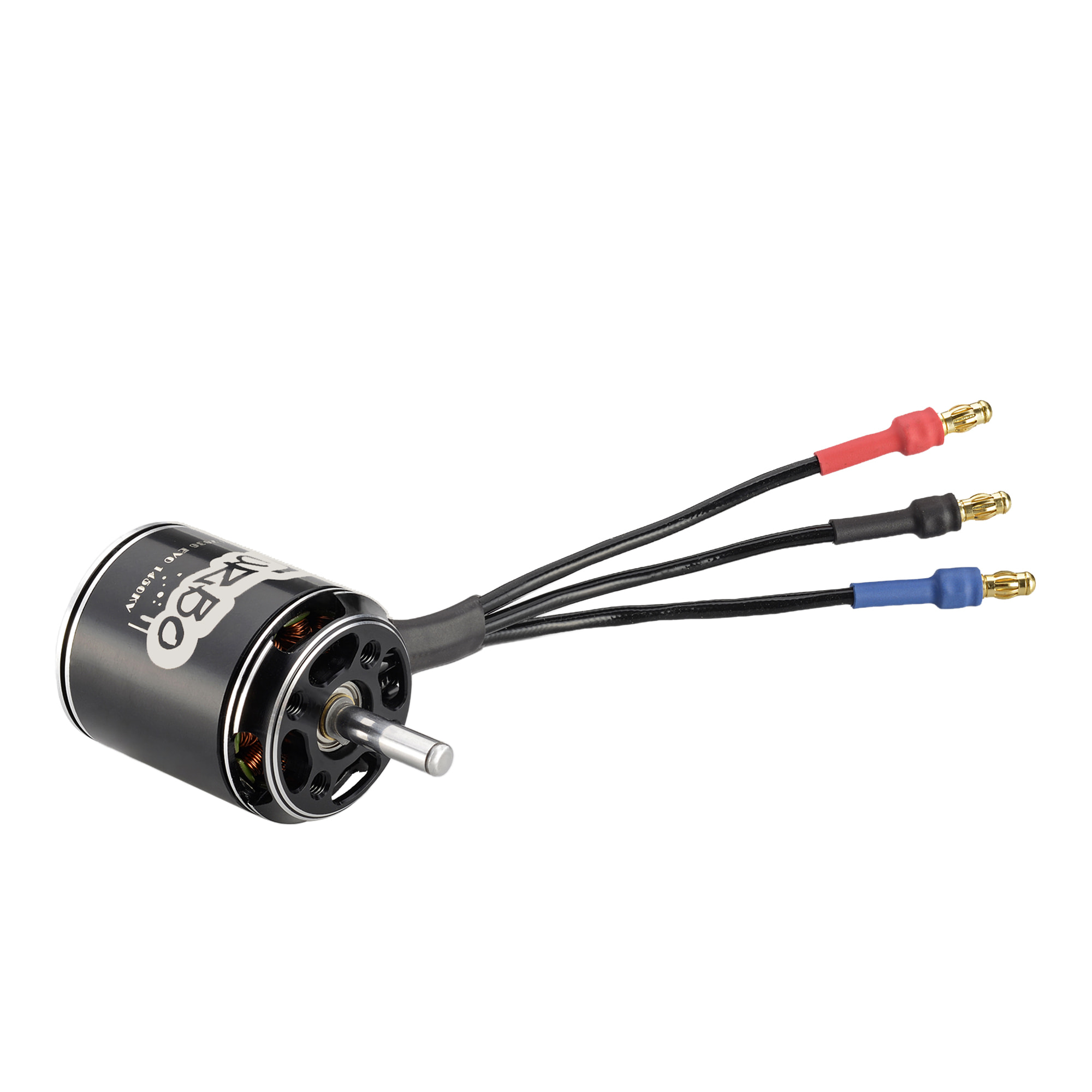

D2836EVOï¼2217ï¼ Bürstenloser RC-Motor für UAV-Flugzeuge, Multikopter, RC-Flugzeuge, Hubschrauber, Cradle-Kaffeemaschine, Milchteemaschine, elektrische Bohrmaschine, Mähmaschine, Roboterarm, Crawler
Hochtemperaturbeständige Kupferdrahtwicklung
Spezifikation des bürstenlosen RC-Motors
Gewicht: 88,6 g (einschließlich Kabel)
Motorgröße: 28 x 36 mm
Wellengröße: 4,0 * 51,0 mm
Statordurchmesser: 22 mm
Statorhöhe: 17 mm
Motorhalterung: 16 * 19 mm (M3 * 4)
Konfiguration: 12N14P
KV-Wert für Auswahl
KV-Wert: 750 KV, 850 KV, 1100 KV, 1450 KV oder kundenspezifischer KV
kV: 750 kV
Maximale Watt: 194,9 W
Maximaler Strom: 11,95 A
Leerlaufstrom: 0,74 A
Widerstand: 124mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 9-Zoll-Stütze
kV: 850 kV
Maximale Watt: 244,5 W
Maximaler Strom: 15,11 A
Leerlaufstrom: 0,92 A
Widerstand: 97,4 mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 10-Zoll-Stütze
kV: 1100 kV
Maximale Watt: 462,7 W
Maximaler Strom: 30,3 A
Leerlaufstrom: 1,37 A
Widerstand: 57,9 mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 9-Zoll-Stütze
kV: 1450 kV
Maximale Watt: 739,6 W
Maximaler Strom: 48,69 A
Leerlaufstrom: 2,24 A
Widerstand: 33,5 mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 9-Zoll-Stütze
D2836EVO Motorzeichnung
D2836EVO Motor TESTDATEN:
TECHNISCHE DATEN DES MOTORS: | |||||||||
Art.-Nr. | Volt (V) | Stütze | Gaspedal(%) | STROM (A) | Leistung (W) | Schub (G) | PRM | Effizienz (g/W) | Betriebs Temperatur(℃) |
D2836-750KV(EVO) | 12.46 | APC 9x6 | 40% | 1.95 | 24.3 | 220 | 5441 | 9.1 | 30.8℃ |
12.45 | 50% | 2.44 | 30.4 | 260 | 5932 | 8.6 | |||
12.44 | 60% | 2.83 | 35.2 | 288 | 6341 | 8.2 | |||
12.43 | 70% | 3.21 | 39.9 | 318 | 6639 | 8.0 | |||
12.41 | 80% | 3.61 | 44.8 | 346 | 6929 | 7.7 | |||
12.39 | 90% | 4.77 | 59.1 | 424 | 7666 | 7.2 | |||
12.38 | 100% | 4.88 | 60.4 | 425 | 7766 | 7.0 | |||
16.59 | APC 9x6 | 40% | 3.44 | 57.1 | 414 | 5962 | 7.2 | 39.5℃ | |
16.56 | 50% | 4.52 | 74.9 | 498 | 6612 | 6.7 | |||
16.53 | 60% | 5.55 | 91.7 | 569 | 7107 | 6.2 | |||
16.50 | 70% | 6.65 | 109.7 | 650 | 7573 | 5.9 | |||
16.44 | 80% | 8.54 | 140.4 | 764 | 8323 | 5.4 | |||
16.33 | 90% | 11.60 | 189.4 | 953 | 9182 | 5.0 | |||
16.31 | 100% | 11.95 | 194.9 | 966 | 9260 | 5.0 | |||
D2836-850KV(EVO) | 12.35 | APC 12x6 | 40% | 2.80 | 34.6 | 265 | 3552 | 7.7 | 38.8℃ |
12.31 | 50% | 4.46 | 54.9 | 350 | 4030 | 6.4 | |||
12.29 | 60% | 5.61 | 68.9 | 454 | 4604 | 6.6 | |||
12.26 | 70% | 7.12 | 87.3 | 583 | 5217 | 6.7 | |||
12.21 | 80% | 9.44 | 115.3 | 727 | 5727 | 6.3 | |||
12.14 | 90% | 12.95 | 157.2 | 825 | 6296 | 5.2 | |||
12.13 | 100% | 13.19 | 160.0 | 827 | 6316 | 5.2 | |||
16.59 | 10x5 | 40% | 3.46 | 57.4 | 387 | 5102 | 6.7 | 39.3℃ | |
16.56 | 50% | 4.98 | 82.5 | 494 | 5745 | 6.0 | |||
16.52 | 60% | 6.47 | 106.9 | 611 | 6429 | 5.7 | |||
16.44 | 70% | 8.51 | 139.9 | 736 | 7077 | 5.3 | |||
16.34 | 80% | 11.12 | 181.7 | 875 | 7760 | 4.8 | |||
16.19 | 90% | 14.66 | 237.3 | 1026 | 8409 | 4.3 | |||
16.18 | 100% | 15.11 | 244.5 | 1028 | 8466 | 4.2 | |||
16.56 | APC 11x7 | 40% | 4.06 | 67.2 | 383 | 4217 | 5.7 | 39℃ | |
16.51 | 50% | 6.02 | 99.4 | 497 | 4794 | 5.0 | |||
16.45 | 60% | 8.16 | 134.2 | 630 | 5444 | 4.7 | |||
16.31 | 70% | 11.64 | 189.8 | 738 | 5944 | 3.9 | |||
16.19 | 80% | 14.58 | 236.1 | 859 | 6394 | 3.6 | |||
15.95 | 90% | 19.66 | 313.6 | 1016 | 6826 | 3.2 | |||
15.91 | 100% | 19.79 | 314.9 | 1011 | 6827 | 3.2 | |||
D2836-1100KV(EVO) | 12.38 | APC 9x6 | 40% | 5.76 | 71.3 | 438 | 6409 | 6.1 | 40.3℃ |
12.32 | 50% | 7.64 | 94.1 | 561 | 7095 | 6.0 | |||
12.25 | 60% | 9.51 | 116.5 | 661 | 7642 | 5.7 | |||
12.19 | 70% | 11.46 | 139.7 | 735 | 8163 | 5.3 | |||
12.03 | 80% | 14.81 | 178.2 | 867 | 8907 | 4.9 | |||
11.71 | 90% | 19.42 | 227.4 | 998 | 9666 | 4.4 | |||
11.66 | 100% | 19.95 | 232.6 | 1008 | 9725 | 4.3 | |||
16.26 | APC8x6 | 40% | 6.71 | 109.1 | 509 | 8519 | 4.7 | 41.2℃ | |
16.19 | 50% | 8.93 | 144.6 | 615 | 9367 | 4.3 | |||
16.12 | 60% | 11.02 | 177.6 | 691 | 10035 | 3.9 | |||
16.04 | 70% | 13.13 | 210.6 | 783 | 10635 | 3.7 | |||
15.78 | 80% | 16.62 | 262.3 | 920 | 11320 | 3.5 | |||
15.47 | 90% | 21.54 | 333.2 | 1049 | 12247 | 3.1 | |||
15.32 | 100% | 24.46 | 374.7 | 1138 | 12580 | 3.0 | |||
16.26 | APC 9x6 | 40% | 7.72 | 125.5 | 667 | 7637 | 5.3 | 42.4℃ | |
16.17 | 50% | 10.41 | 168.3 | 794 | 8453 | 4.7 | |||
16.07 | 60% | 13.03 | 209.4 | 912 | 9119 | 4.4 | |||
15.84 | 70% | 15.92 | 252.2 | 956 | 9719 | 3.8 | |||
15.63 | 80% | 20.92 | 327.0 | 1210 | 10617 | 3.7 | |||
15.35 | 90% | 27.22 | 417.8 | 1456 | 11466 | 3.5 | |||
15.27 | 100% | 30.30 | 462.7 | 1623 | 11804 | 3.5 | |||
D2836-1450KV(EVO) | 12.25 | APC9x6 | 40% | 9.81 | 120.2 | 618 | 7540 | 5.1 | 43.5℃ |
12.04 | 50% | 13.06 | 157.2 | 743 | 8280 | 4.7 | |||
11.91 | 60% | 16.21 | 193.1 | 879 | 8883 | 4.6 | |||
11.82 | 70% | 19.69 | 232.7 | 995 | 9475 | 4.3 | |||
11.63 | 80% | 24.92 | 289.8 | 1178 | 10239 | 4.1 | |||
11.60 | 90% | 32.92 | 381.9 | 1429 | 11194 | 3.7 | |||
11.58 | 100% | 37.35 | 432.5 | 1535 | 11602 | 3.5 | |||
15.97 | APC8x4 | 40% | 12.13 | 193.7 | 704 | 10860 | 3.6 | 44.2℃ | |
15.82 | 50% | 16.29 | 257.7 | 847 | 11467 | 3.3 | |||
15.67 | 60% | 19.77 | 309.8 | 945 | 12423 | 3.1 | |||
15.70 | 70% | 25.24 | 396.3 | 1108 | 13360 | 2.8 | |||
15.48 | 80% | 32.96 | 510.2 | 1292 | 14290 | 2.5 | |||
15.26 | 90% | 43.38 | 662.0 | 1497 | 14668 | 2.3 | |||
15.19 | 100% | 48.69 | 739.6 | 1582 | 16579 | 2.1 | |||
Hinweise: Die Testbedingung für die Temperatur ist die Motoroberflächentemperatur bei 100 % Gas, während der Motor 15 Sekunden lang bei einer Umgebungstemperatur von 26 °C läuft | |||||||||
