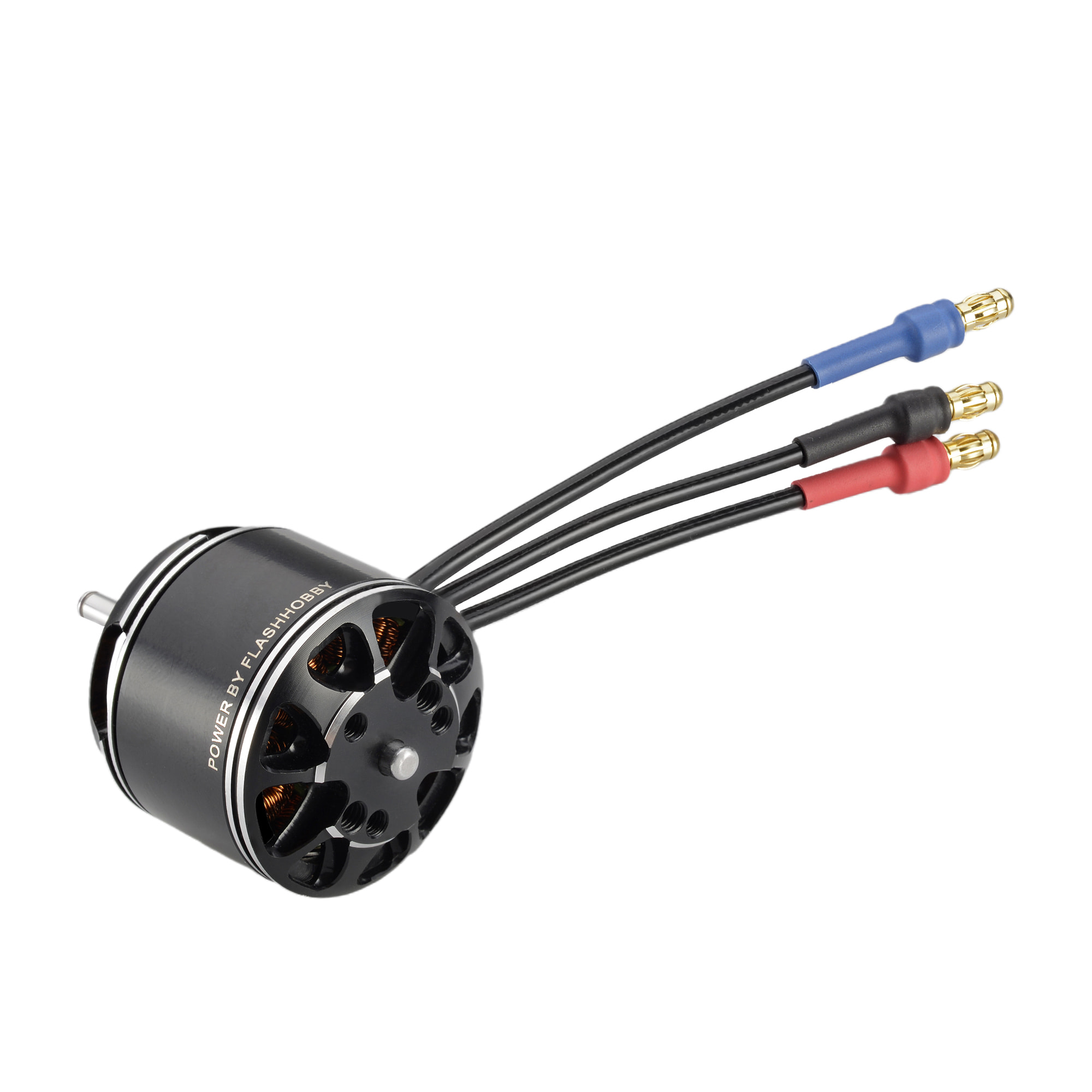

2826 EVO Starrflügelmotor

Als professioneller Hersteller von 2826 EVO Starrflügelmotoren können Sie sicher sein, 2826 EVO Starrflügelmotor von der Flash Hobby-Fabrik zu kaufen, und wir bieten Ihnen den besten Kundendienst und pünktliche Lieferung.
âGewicht: 55,7 g (einschließlich Kabel)
âMotorgröße: 28 x 26 mm
âWellengröße: 3,0 * 41,0 mm
âStatordurchmesser: 22 mm
âStatorhöhe: 8mm
âMotorhalterung: 16*19mm (M3*4)
âKonfiguration: 12N14P
âKV-Wert: 930KV, 1000KV,1450KV,2200KV oder kundenspezifischer KV

Modell:2826 EVO

Anfrage absenden

Produktbeschreibung

Fabrik liefert direkt Qualität 2826 EVO Starrflügelmotor aus China. Flash Hobby ist Hersteller und Lieferant von 2826 EVO Starrflügelmotoren in China.


D2826 EVOAnwendung für bürstenlose RC-Motoren

D 2826 EVO RC Brushless Motor für UAV-Flugzeuge, Multikopter, RC-Flugzeuge, Hubschrauber, Wiegekaffeemaschine, Milchteemaschine, elektrische Bohrmaschine, Mähmaschine, Roboterarm usw.


D2826 EVOMerkmale des bürstenlosen RC-Motors:
48H Füllstandsmagnet
Präzisionsauswuchtrotortest
14P12N Motordesign mit hohem Drehmoment
CNC 6061-T6 Aluminiumglocke
Importiertes (NSK/NMB) Lager mit hoher Drehzahl

Hochtemperaturbeständige Kupferdrahtwicklung


D2826 EVOSpezifikation des bürstenlosen RC-Motors

Gewicht: 55,7 g (einschließlich Kabel)
Motorgröße: 28 x 26 mm
Wellengröße: 3,0 * 41,0 mm
Statordurchmesser: 22 mm
Statorhöhe: 8 mm
Motorhalterung: 16 * 19 mm (M3 * 4)
Konfiguration: 12N14P


KV-Wert zur Auswahl:

KV-Wert: 930 KV, 1000 KV, 1450 KV, 2200 KV oder kundenspezifischer KV


kV: 930 kV
Maximale Watt: 162,9 W
Maximaler Strom: 13,2 A
Leerlaufstrom: 0,63 A
Widerstand: 156,3 mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 9-Zoll-Stütze

kV: 1100 kV
Maximale Watt: 292 W
Maximaler Strom: 18,43 A
Leerlaufstrom: 0,7 A
Widerstand: 137,9 mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 9-Zoll-Stütze

kV: 1450 kV
Maximale Watt: 367 W
Maximaler Strom: 30,97 A
Leerlaufstrom: 1,26 A
Widerstand: 30,5 mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 9-Zoll-Stütze

kV: 2200 kV
Maximale Watt: 311,5 W
Maximaler Strom: 26,1 A
Leerlaufstrom: 1,26 A
Widerstand: 30,5 mΩ
Batterie: 3-4S Lipo
Empfohlene Stütze: 9-Zoll-Stütze

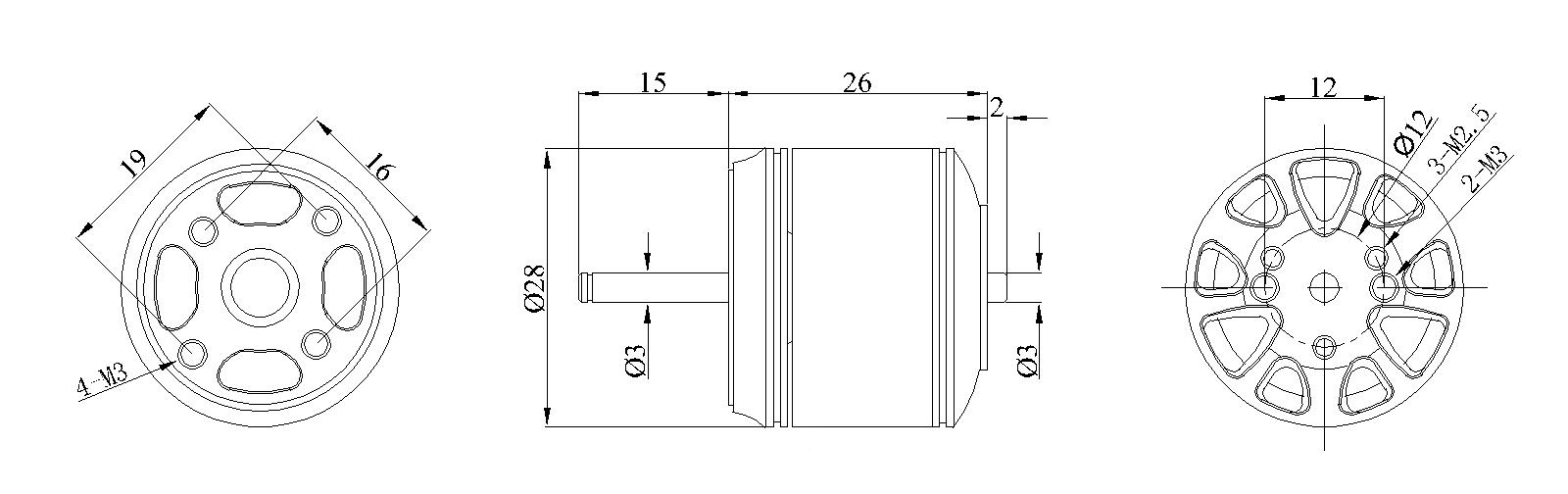

D2826 EVO Motorzeichnung:

D2826 EVO Motortestdaten:

TECHNISCHE DATEN DES MOTORS:
Art.-Nr. Volt (V) Stütze Gaspedal(%) STROM (A) Leistung (W) Schub  (G) PRM Effizienz    (g/W) Betriebs           Temperatur()
D2826-930KV(EVO) 12.56  APC 9x6 40% 2.66  33.4  266  4413  8.0  36.7
12.54  50% 3.66  45.9  344  4972  7.5
12.52  60% 4.78  59.8  421  5483  7.0
12.48  70% 6.70  83.6  522  6153  6.2
12.42  80% 9.02  112.0  655  6808  5.9
12.37  90% 11.79  145.8  781  7409  5.4
12.34  100% 13.20  162.9  840  7647  5.2
12.48  APC 9x6 40% 2.53  31.6  225  4806  7.1  36.3
12.46  50% 3.40  42.4  288  5418  6.8
12.44  60% 4.29  53.4  360  5910  6.7
12.41  70% 5.55  68.9  378  6509  5.5
12.37  80% 7.41  91.7  529  7181  5.8
12.33  90% 9.71  119.7  650  7881  5.4
12.31  100% 10.89  134.1  688  8189  5.1
D2826-1000KV(EVO) 12.62  APC 9x6 40% 2.99  37.7  280  5084  7.4  36.2
12.55  50% 3.97  49.8  314  5726  6.3
12.47  60% 5.03  62.7  380  6250  6.1
12.27  70% 6.55  80.4  432  6824  5.4
12.14  80% 8.56  103.9  511  7476  4.9
12.06  90% 11.15  134.5  609  8175  4.5
12.00  100% 12.50  150.0  648  8416  4.3
16.63  APC 8x6 40% 3.87  64.4  335  7104  5.2  37.5
16.55  50% 5.22  86.4  413  7858  4.8
16.45  60% 6.52  107.3  489  8523  4.6
16.33  70% 8.07  131.8  566  9113  4.3
16.10  80% 10.50  169.1  674  9922  4.0
16.01  90% 13.95  223.3  805  10742  3.6
15.94  100% 15.67  249.8  847  11100  3.4
16.56  APC 9x6 40% 4.16  68.9  397  6283  5.8  38.8
16.46  50% 5.70  93.8  493  6992  5.3
16.31  60% 7.44  121.3  605  7639  5.0
16.21  70% 9.94  161.1  758  8398  4.7
16.00  80% 12.90  206.4  917  9156  4.4
15.88  90% 16.62  263.9  1050  9886  4.0
15.85  100% 18.43  292.1  1111  10141  3.8
D2826-1450KV(EVO) 12.49  7x5 40% 6.44  80.4  340  7639  4.2  38.5
12.46  50% 8.68  108.2  423  8486  3.9
12.41  60% 11.01  136.6  500  9187  3.7
12.35  70% 13.59  167.8  584  9883  3.5
12.25  80% 17.86  218.8  711  10820  3.2
12.13  90% 23.15  280.8  835  11707  3.0
12.07  100% 25.83  311.8  887  12081  2.8
12.49  APC 8x6 40% 6.45  80.6  393  7565  4.9  39.2
12.44  50% 8.77  109.1  480  8388  4.4
12.39  60% 11.19  138.6  565  9024  4.1
12.34  70% 13.85  170.9  649  9708  3.8
12.22  80% 18.49  225.9  778  10583  3.4
12.09  90% 24.27  293.4  909  11409  3.1
12.00  100% 27.09  325.1  956  11673  2.9
12.46  APC 9x6 40% 7.04  87.7  416  6668  4.7  40.1
12.40  50% 9.78  121.3  592  7455  4.9
12.33  60% 13.05  160.9  708  8202  4.4
12.24  70% 16.67  204.0  855  8912  4.2
12.11  80% 21.72  263.0  1017  9704  3.9
11.92  90% 28.11  335.1  1194  10381  3.6
11.85  100% 30.97  367.0  1256  10645  3.4
D2826-2200KV(EVO) 12.41  APC9x6 40% 8.53  105.9  328  17323  3.1  39.6
12.37  50% 10.54  130.4  387  18730  3.0
12.33  60% 12.34  152.2  442  19866  2.9
12.29  70% 13.86  170.3  500  20750  2.9
12.26  80% 15.20  186.4  538  21420  2.9
12.19  90% 17.35  211.5  583  22561  2.8
12.14  100% 19.42  235.8  653  23470  2.8
12.34  EP6050 40% 10.35  127.7  448  14953  3.5  40.9
12.28  50% 13.11  161.0  547  16434  3.4
12.22  60% 15.48  189.2  626  17576  3.3
12.17  70% 17.58  213.9  698  18557  3.3
12.11  80% 19.64  237.8  772  19451  3.2
11.99  90% 23.63  283.3  896  20856  3.2
11.92  100% 26.13  311.5  963  21658  3.1
Hinweise: Die Testbedingung für die Temperatur ist die Motoroberflächentemperatur bei 100 % Gas, während der Motor 15 Sekunden lang bei einer Umgebungstemperatur von 26 °C läuft

ANWENDUNG:



Hinweis: Wir ändern den Prop-Adapter der EVO-Serie wie unten abgebildet vom 29.04.2022.



VERBINDUNG:
